Types of Sintered Bushing

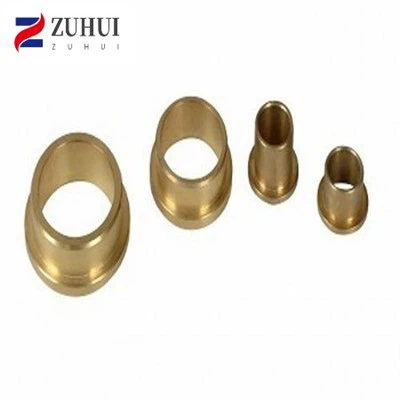

Oil-impregnated Sintered Bushings
These bushings are infused with oil for self-lubrication, making them ideal for use in applications with high loads, low speeds, or difficult-to-reach areas. The oil helps to reduce friction and wear on the bushing, extending its useful life and reducing maintenance requirements.

Graphite-impregnated Sintered Bushings
Similar to oil-impregnated bushings, graphite-impregnated bushings provide excellent self-lubrication properties. Graphite is a solid lubricant that is embedded within the bushing material, providing reliable and consistent lubrication over time.

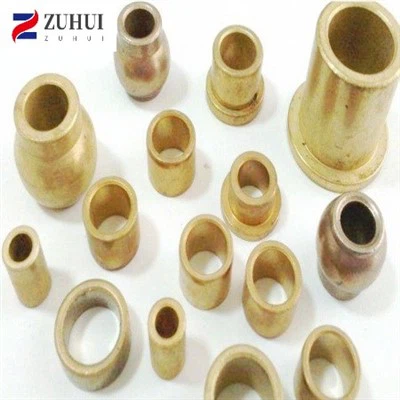

Bronze Sintered Bushings
Bronze sintered bushings are a popular choice for their excellent strength and stability. They are ideal for use in high-load, high-speed applications, where they can withstand the stresses and pressures of heavy-duty use.

Iron Sintered Bushings
Iron sintered bushings are similar to bronze bushings, but are better suited to high-temperature environments where bronze may become brittle or deform. They are also resistant to corrosion and chemical degradation, making them ideal for use in harsh environments.

Stainless Steel Sintered Bushings
Stainless steel sintered bushings are prized for their resistance to corrosion and high temperatures. They are ideal for use in corrosive environments, as well as in high-temperature applications where other types of bushings may not be able to withstand the heat.

Application of Sintered Bushing

Automotive Industry

Sintered bushings are extensively used in automotive applications such as suspension systems, engine components, and transmission systems. These bushings provide reliable and long-lasting performance, reducing maintenance costs and increasing the lifespan of the components.

Aerospace Industry

Sintered bushings are also used in the aerospace industry for various applications such as bearings, actuators, and fuel system components. These bushings provide stability in high-temperature and high-vibration environments, reducing the need for maintenance and improving the safety of the aircraft.

Machinery And Equipment

Sintered bushings are used in machinery and equipment such as pumps, motors, generators, and compressors. These bushings reduce friction, wear, and noise, while increasing efficiency and reliability, thus improving the overall performance of the machines.

Electrical Industry

Sintered bushings are also used in electrical equipment such as transformers, switches, connectors, and relays. These bushings provide electrical insulation, high-temperature stability, and dimensional stability, ensuring the smooth functioning of the equipment.

Medical Industry

Sintered bushings are used in the medical industry for applications such as implants, surgical instruments, and equipment. These bushings provide biocompatibility and corrosion resistance, reducing the risk of infection and improving the outcomes of medical procedures.

How Do You Install a Sintered Bushing

Clean the surrounding area

Before you start, ensure that the area where the bushing is going to be installed is clean and free from any debris, dust or dirt. This will help ensure that the bushing sits correctly and works effectively.

Prepare the installation tools

To install the sintered bushing, you will need a press or a hydraulic tool to ensure that the bushing is pushed into place. You will also need lubrication grease to help the bushing slide more easily into the hole, and a rod or pin to keep the bushing in place during installation.

Apply lubrication

Apply a generous amount of lubrication grease to the outside of the sintered bushing. This will help it to slide more easily into place and prevent any damage to the bushing or the surrounding area.

Position the bushing

Position the sintered bushing into the hole where it is going to be installed. Ensure that it is correctly aligned and that it sits flush against the surrounding surface.

Start the press

Place the rod or pin through the center of the sintered bushing and into the press or hydraulic tool. Carefully start the press, applying pressure gradually until the sintered bushing is firmly in place.

Check for proper installation

Once the sintered bushing is installed, double-check that it is sitting correctly and that there are no gaps or misalignments. Test the bushing, and ensure that it is working as intended.

Components of Sintered Bushing

Metal Powder

Sintered bushings are made by compressing and sintering metal powder. The type of powder used depends on the application, and common materials include bronze, iron, nickel, and copper. The powder is carefully selected for its properties, such as strength and wear resistance.

Binder

A binder is added to the metal powder to help it stick together during the compacting process. Binders are typically organic materials that can be burned off during the sintering process. Common binders include wax, oil, and polyethylene.

Lubricant

Sintered bushings are known for their self-lubricating properties, which eliminate the need for additional lubrication. A lubricant is added to the metal powder to create a porous structure that allows the lubricant to flow freely between the bushing and the mating surface. Common lubricants include graphite and molybdenum disulfide.

Sintering Furnace

The compacted metal powder is subjected to high temperature and pressure in a sintering furnace. The heat causes the metal particles to bond together, forming a solid structure. The furnace temperature and pressure are carefully controlled to ensure that the sintering process is effective and the final product meets the required specifications.

Machining Tools

Once the sintering process is complete, the bushing must be machined to the required dimensions. Machining tools, such as lathes and drills, are used to remove excess material and create a smooth surface. The tools used depend on the material and application of the bushing.

Material of Sintered Bushing

Sintered bushings are typically made from powdered metal materials which are heated and compressed together in a process called sintering. These powdered metal materials can include iron, copper, brass, aluminum and other alloys. In sintering, the powders are first mixed together and then compacted into a specific shape using a mold. The compacted powder is then heated in a furnace at a high temperature, causing the particles to fuse together. This process creates a solid and porous structure, with the porosity and density of the final product depending on the specific requirements of the application.

We are experts at this industry

Regular lubrication
One of the most critical aspects of sintered bushing maintenance is proper lubrication. Sintered bushings require lubrication to prevent metal-to-metal contact and reduce friction, wear, and noise. Use the recommended lubricant as specified by the manufacturer. Avoid using too much or too little lubricant as both can damage the bushing. Check the lubricant level regularly and reapply as necessary, especially in high load or high-speed applications.

Avoid Contaminants
Contaminants such as dirt, dust, and debris can cause damage to sintered bushings. To avoid this, keep the surrounding area clean and minimize exposure to these elements. Also, avoid using any cleaning agents that are not recommended by the manufacturer as they can damage the bushing’s surface.

Check for wear

Check the sintered bushing regularly for signs of wear, such as excessive looseness, noise, vibration, or increased friction. These signs indicate that the bushing needs to be replaced. It is essential to replace the bushing as soon as possible to prevent damage to other components in the system.

Proper installation

Proper installation is crucial for the sintered bushing to function effectively. Read the manufacturer’s instructions carefully and follow them precisely. Use the recommended tools and techniques to install the bushing, and don’t forget to check the clearance and fit before installation.

Avoid overloading

Sintered bushings have a specific load capacity, and exceeding this can cause damage to the bushing. Follow the manufacturer’s guidelines for the maximum allowable load and ensure that the application does not surpass this limit.

How Sintered Bushing Work

The manufacturing process for sintered bushings begins with the raw materials. These materials are typically metal powders, such as iron, brass, or bronze. To achieve the desired properties, different material compositions can be used. For example, if high wear resistance is required, a material containing a higher percentage of copper may be used. The metal powder is then loaded into a die and compressed at high pressure to form a solid shape. This process is called compacting. The compacted structure, known as a green part, is then subjected to heat in a furnace. During the sintering process, the metal particles fuse together, creating a solid metal structure with a high degree of porosity. The porosity is important because it allows for the lubricating oil to be retained inside the bushing, reducing friction and wear between moving parts. After sintering, the bushing is shaped and finished using machining processes, such as turning, drilling, and milling. The final product is a precision-engineered component that is strong, durable, and able to withstand high loads and temperatures.

What Is the Difference Between a Sintered Bushing and a Traditional Bearing

A sintered bushing is a type of self-lubricating bearing made of powdered metal material. It is formed by compressing and heating the powder, which fuses the particles together to create a solid, porous structure. The porosity allows the bushing to hold and distribute lubrication throughout its surface, providing continuous lubrication and reducing friction. The sintered bushing does not need any external lubrication, making it ideal for situations where frequent maintenance is not possible or desirable. On the other hand, a traditional bearing is a mechanical component that consists of a metal ring and moving elements (balls or rollers) that rotate inside the ring. A cage usually separates the moving elements and the raceways in the ring to reduce friction and wear. A traditional bearing needs to be lubricated with grease or oil to prevent friction and overheating. The main difference between a sintered bushing and a traditional bearing is their method of lubrication. Sintered bushings are self-lubricating and do not require any external lubrication, while traditional bearings need to be lubricated with grease or oil. Sintered bushings are typically quieter than traditional bearings because they do not have any moving parts. Additionally, sintered bushings are more resistant to wear and corrosion due to their unique material properties.

What Factors Should Be Considered When Selecting a Sintered Bushing

Material Composition
The material used in the sintered bushing must be carefully selected to ensure that it is suitable for the intended application. Factors such as load-bearing capacity, corrosion resistance, and wear resistance should be considered when selecting the material.

Size And Shape
The size and shape of the sintered bushing should be chosen to match the requirements of the application. Factors such as the diameter and length of the bushing, as well as the shape of the bore and outer surface, must be considered.

Load Capacity
The load capacity of the sintered bushing is an important factor to consider. It should be able to withstand the load and stress of the application without deforming or failing.

Lubrication
Depending on the application, the sintered bushing may require lubrication to prevent wear and reduce friction. The type and amount of lubricant required should be taken into account when selecting the bushing.

Temperature Range
The sintered bushing must be able to operate within the required temperature range without degrading or failing. The maximum and minimum temperatures of the application should be considered when selecting the bushing.

Environment
The operating environment of the sintered bushing should be taken into account. Factors such as exposure to moisture, chemicals, and abrasive materials should be considered to ensure that the bushing can withstand the environment.

Cost
The cost of the sintered bushing should be considered in relation to the requirements of the application. A balance should be struck between the cost of the bushing and its ability to meet the needs of the application.
